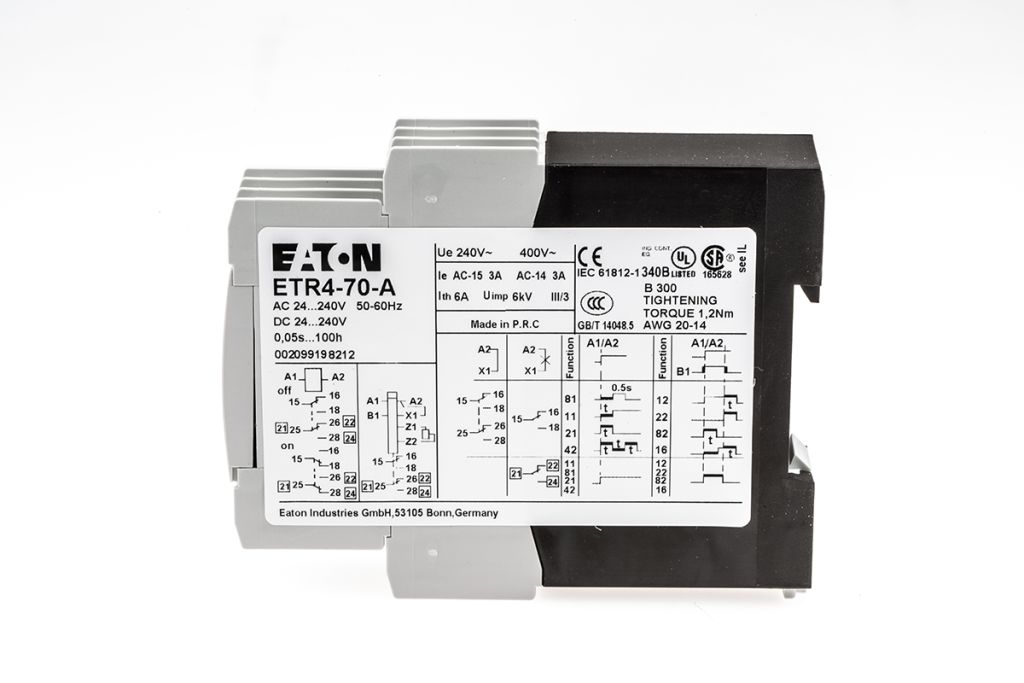

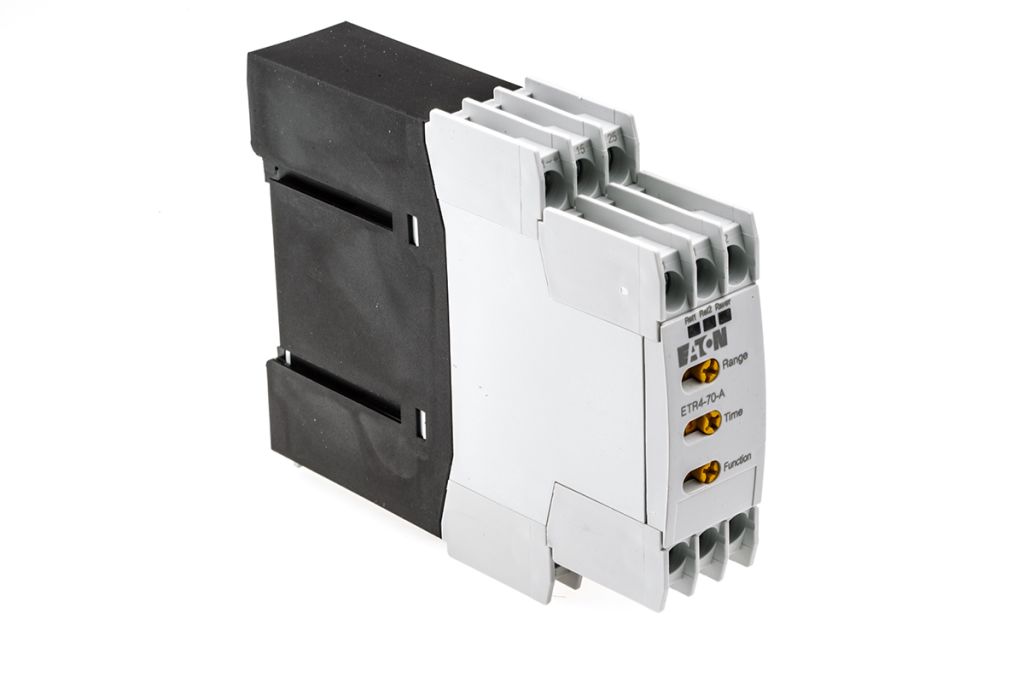

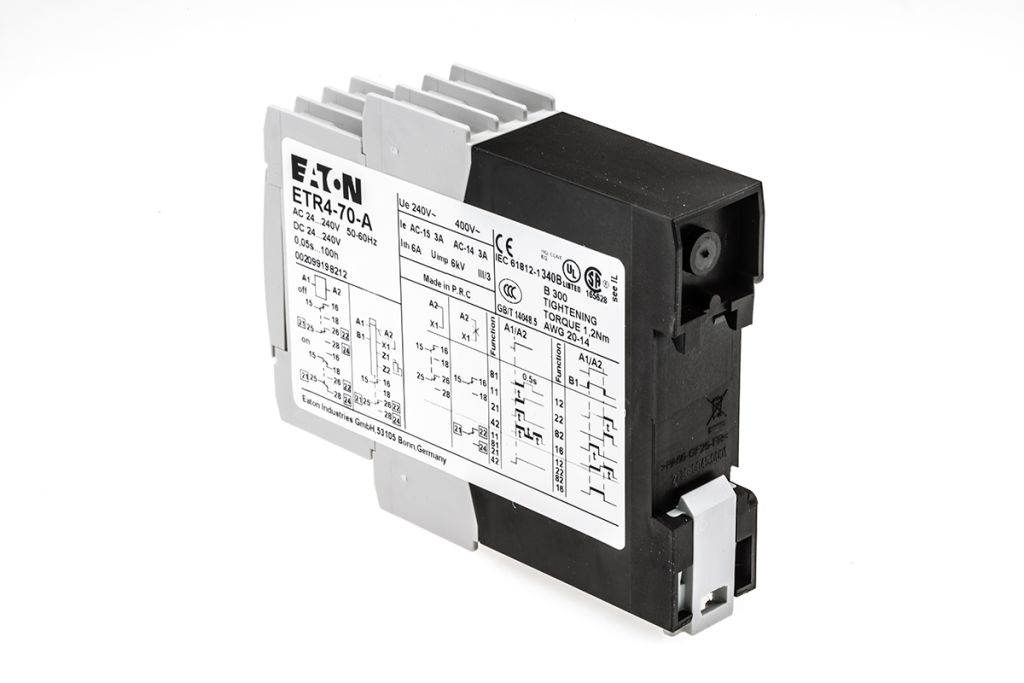

MULTIFUNCTION TIMER,0.05SEC-100HR,70A
- RS Stock No.:
- 2962376
- Mfr. Prt No.:
- 031888 ETR4-70-A
- Brand:
- Eaton
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 2962376 |
| Product description | MULTIFUNCTION TIMER,0.05SEC-100HR,70A |
| Manufacturer / Brand | Eaton |
| Manufacturer part number | 031888 ETR4-70-A |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Jun 23, 2025 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Country of Origin: CN
Product Details
Specifications
| Attribute | Value |
| Brand | Eaton |
| Supply Voltage | 24 → 240 V ac/dc |
| Minimum Voltage | 12 V ac/dc |
| Minimum Operating Temperature | -20 °C |
| Mode of Operation | Flash, Fleeting, OFF Delay, ON Delay, Pulse Former, Pulse Generator |
| Time Range | 0.05 s → 60 h |
| Power Supply | External |
| Depth | 103 mm |
| Time Increment | Hours, Seconds |
| Length | 82.5 mm |
| Width | 22.5 mm |
| Series | ETR4 |
| Maximum Voltage | 240 V ac/dc |
| Number of Contacts | 2 |
| Terminal Type | Screw |
| Mounting Type | DIN Rail |
| Time Delay | 70 (Recovery) ms |
| Number of Timer Functions | Multi Function |
| Switch Configuration | DPDT |
| Current Maximum | 6 A |
| Maximum Operating Temperature | +60 °C |
| Contact Configuration | DPDT |
