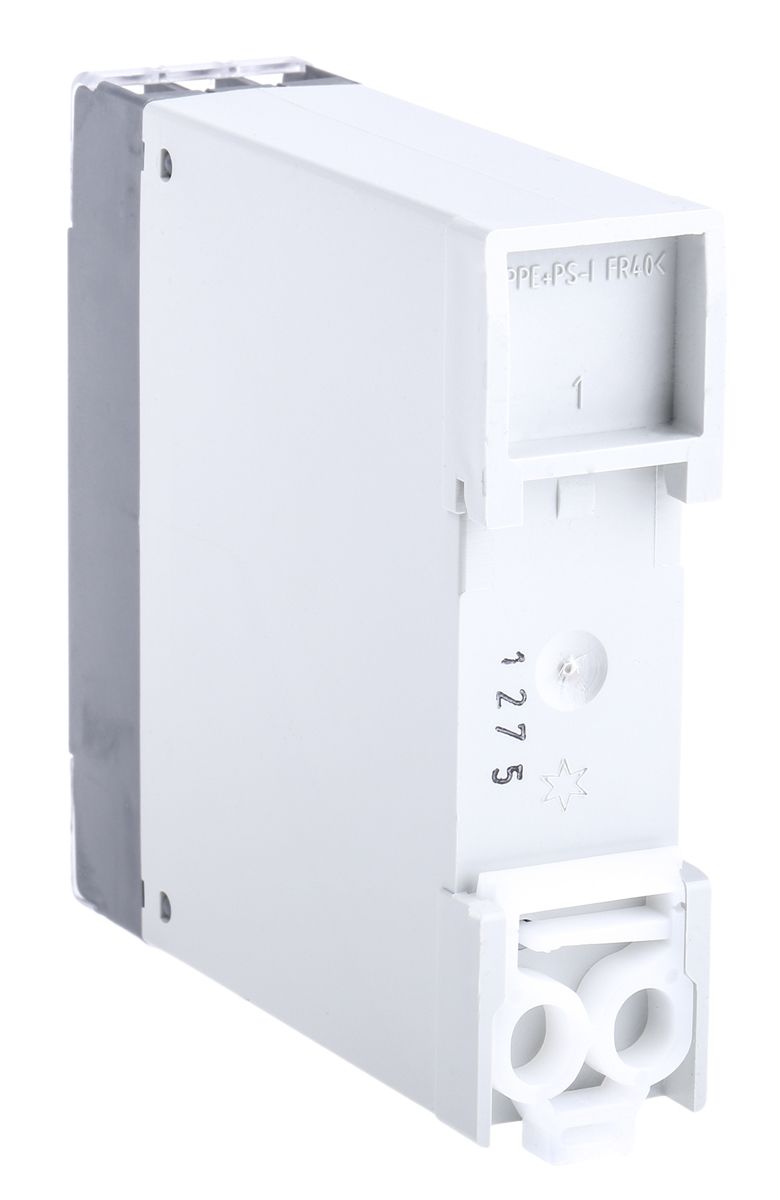

CT-ERE SPDT ON-DELAY TIMER,0.1-10SECONDS
- RS Stock No.:
- 4429118
- Mfr. Prt No.:
- 1SVR550107R1100
- Brand:
- ABB
Legislation and Compliance
RoHS Status: Not Applicable
Statement of Conformity
RS Components
Statement of Conformity
This statement confirms that the product detailed below complies with the specifications currently published in the RS media and has been subject to the strict quality conditions imposed by RS Components’ internal management systems. Furthermore and where applicable, it confirms that all relevant semiconductor devices have been handled and packed under conditions that meet the administrative and technical requirements of ANSI/ESD S20.20 and EN61340-5-1 electrostatics control standards.
Compliant Product Details
| RS stock number | 4429118 |
| Product description | CT-ERE SPDT ON-DELAY TIMER,0.1-10SECONDS |
| Manufacturer / Brand | ABB |
| Manufacturer part number | 1SVR550107R1100 |
The foregoing information relates to product sold on, or after, the date shown below.
RS COMPONENTS
| Date | Apr 30, 2025 |
RS Components Pte Ltd Robinson Road, P.O. Box 1582, Singapore 903132
Product Details
Specifications
| Attribute | Value |
| Brand | ABB |
| Supply Voltage | 200 → 240 V ac, 24 V ac/dc |
| Time Range | 0.1 → 10 s |
| Time Increment | Seconds |
| Length | 78 mm |
| Width | 22.5 mm |
| Minimum Operating Temperature | -20 °C |
| Mode of Operation | ON Delay |
| Number of Contacts | 1 |
| Power Supply | External |
| Contact Material | Silver Cadmium Oxide |
| Maximum Voltage | 250 V |
| Mounting Type | DIN Rail |
| Number of Timer Functions | Single |
| Depth | 78.5 mm |
| Switch Configuration | SPDT |
| Current Maximum | 4 A |
| Maximum Operating Temperature | +60 °C |
| Contact Configuration | SPDT |
